PRODUCTION EQUIPMENT

FACILITY SPECIFICATION AVAILABILITY
Computerized Strip Edge Trimming Line

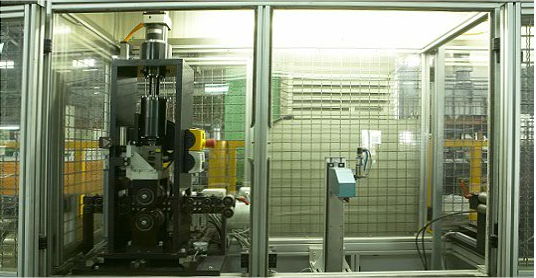

Automatic Longitudinal Straighten Line
High Frequency Induction Heat Treatment
Steel Cutting Rule Steel Cutting Rules w/ and w/o Edge Hardened
Steel Creasing Rules
Thickness:0.71mm(2pt)、1.07mm(3pt)、1.42mm(4pt)、
Height:22.8mm ~ 50.0mm
Hardness:HS45 ~ HS60

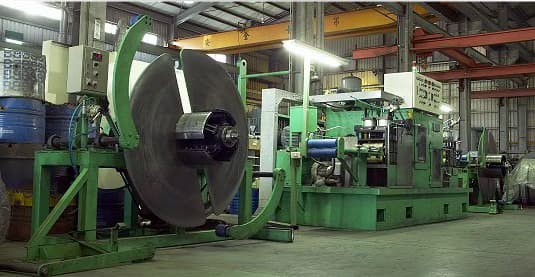

Surface Polishing Machine

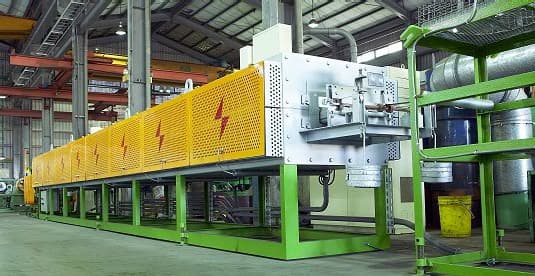

Blue Coloring Furnace
Special Hardened & Tempered Steel Strip 0.2mmt ~ 2.5mmt × 250mmw max
0.2mmt ~ 2.5mmt × 250mmw max
Slitters (2 Sets) Steel Strip in Coil S50C、SK7、SK5、SK4、SKS51、SAE4130
0.2mmt ~ 2.5mmt × 8.0mmw ~490mmw
CR Hardness: HB 75 ~ 85
HR Hardness: HB 85 ~ 100

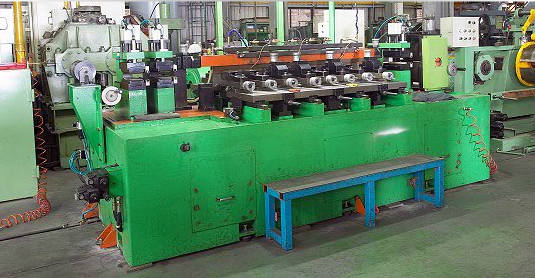

Computerized Strip Edge Trimming Line

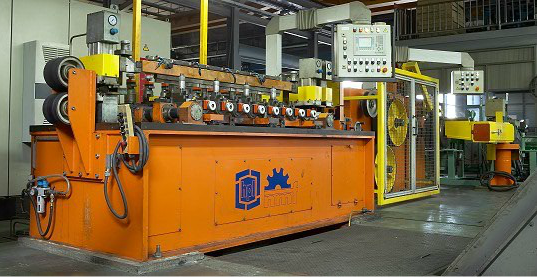

Strip Edge Trimming Line
Semi-circle, Straight & Trimmed Edges 0.4mmt ~ 1.6mmt × 50mmw max.
0.5mmt ~ 3.2mmt × 250mmw max.
